Surface Disinfection
.png)

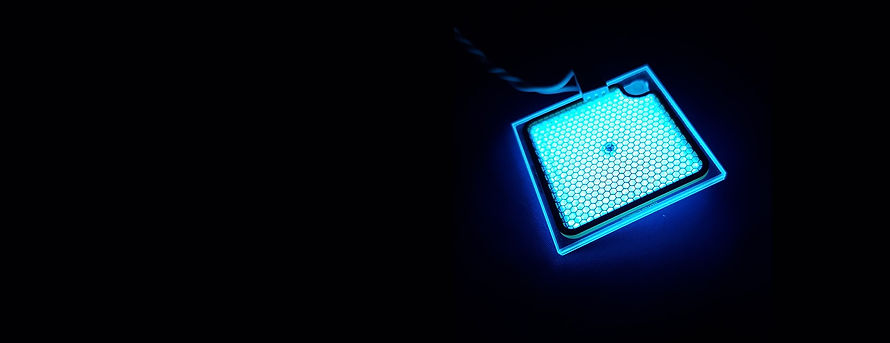

Far UVC excimer technology
When high energy atoms form a short lived molecular pair and gets electronically excited, it change to a temporary atomic state called "excited dimer", and release energy as it return to its original state, it could be vary by the elements that being use.
In this case Kryptoncloride(KrCl), a noble gas compound inside the lamp chamber gets excited by high-energy electrons and generates an intense plasma discharge, also known as dielectric barrier discharge. The generated plasma contains high-energy electrons which can be immediately extinguished. The plasma induces the atomic excitement of the noble gas inside the lamp and triggers the formation of the excited dimers. We use this technique to generates 222nm ultraviolet photons, this particular wavelength is known for its excellent anti-microbial disinfection capabilities.
Standard verision
(i-BT)
Universal downlight version
(i-UDT)
Fixed downlight verision
(i-DU)
Care222 i-BT
The latest product released from USHIO Japan in 2020, the i-BT uses the Care222 Far-UVC light module for surface disinfection, and at the mean time includes motion sensor and rangefinder that will switch to a different setting while it detects whether if someone is around, so that people won't exceeding the TLV of ACGIH.
It's has 3 various models available for different scenario, the standard i-BT, the i-UDT that allows you to adjust the angle up to 45 degree, and the fixed i-DU downlight that can hide into the ceiling.
Care222
i-SERIES MODELS
High power output
ACGIH TLV standard
Options fits any spaces
Made in Japan
Optical narrow filter
Highly adjustable
Care222® Model Specifications
MODEL
i-BT
i-UDT
i-DU
Output Power:
5.4mW/cm²
5.4mW/cm²
5.4mW/cm²
Input Voltage:
DC 24V
AC100~240V
DC 24V
Wavelength:
222nm
222nm
222nm
Weight:
1kg
2.5kg
2kg
Power Consumption:
Lifespand:
15W
3000 hrs
20W
15W
3000 hrs
3000 hrs
Available: 2021 Jan
NOVA
GEMINI
NOVA
Combined USHIO Japan and ERGOSHIELD technologies we proudly introduces our latest creation NOVA & GEMINI. It's designed for users who have a lesser need in angle adjustment and more on a simple and elegant outlook design.
They're both powered by Care222 far UVC light module, that means the irradiance of NOVA is exactly same as the i-BT, and the GEMINI even doubled it at 11mW/cm2. However, it doesn't include the motion sensor and the rangefinder since it's not suppose to change its application once it's been set, we do have the safety procedure for limiting the TLV of ACGIG by different preset mode, and its price is reduced by 20% in return.
PD-01
PD-02
PD-arc
PD-01
ERGOSHIELD second alternative excimer product line, the purple dragon series aim to lower the threshold but remain a high enough intensity for the germicidal effect. It has the largest amount of different models available to choose, you can select the one that fits better for your need by length, intensity as well as some special designed approach for certain application such as PD-arc
Because it would be such a long story to tell if we puts all models at once, that's why we've chosen 3 most popular searched model up here. The PD-01 and PD-02 can fits pretty much most of the scenario, they both shipped with 222nm plasma excimer, motion sensor and a LCD display system control kit, fully ready to operate
ERGOSHIELD Model Specifications
MODEL
NOVA
GEMINI
PD-01
Output Power:
5.4mW/cm²
11mW/cm²
3.8mW/cm²
Input Voltage:
DC 24V
AC100~240V
DC 24V
Wavelength:
222nm
222nm
222nm
Weight:
1kg
2.5kg
2kg
Power Consumption:
Lifespand:
15W
3000 hrs
20W
20W
3000 hrs
4000 hrs
Available: 2021 Jan
Care222
ES-EDITION MODELS
Mid-tier price
Clean & Elegant design
High power output
The only duo Far-UV light
ACGIH TLV standard
Eco-Friendly
Purple Dragon
SERIES
4000 hours lifespan
ACGIH TLV standard
Options fits any spaces
Economical
Eco-Friendly
LCD Display
Purple Dragon SERIES
HEALTHÉ® SPACE
Customize dimension
HEALTHÉ® SPACE
The Healthé® Space downlight provides both sanitizing far-UVC light (222nm) and general illumination. The downlight is designed to easily retrofit 6" recessed cans with E26 (medium) base sockets. The built-in far-UVC light delivers 222 nm disinfection that inactivates over 90% of contaminants. Early studies have shown that far-UVC light does not penetrate the top layer of the skin or tear layers of the eye.
Thin 222nm
UV Lamps
Illumination included
Customisable dimension
3mm ultra thin size
More Focus irradiation
Eco-Friendly
